Sensitivity of the subbasin size on discharge¶
This example shows how to change the subbasin size repeatedly using the builtin GRASS interface and investigate the changes in discharge of each configuration.
[2]:
import os
import pandas as pd
from matplotlib import pyplot as plt
import swimpy
p = swimpy.Project()
# work on a clone to avoid messing things up
c = p.clone('subbasin_size_sensitivity')
# adapt some config parameters for simplification
c.config_parameters(brunoffdat=False)
c.config_parameters(bwam_module=False)
c.config_parameters(brsvmodule=False)
c.output_files.clear()
c.output_files(subbasin_label_daily_selected_stations_discharge=['discharge'])
# turn off runtime warnings (e.g. routing problems due to small subbasins)
c.config_parameters(log_stdout_level='error', log_stderr_level='error')
# r.watershed threshold values
upthresh = [30, 50, 200]
# get clim file averages
mclim = c.climate.inputdata.groupby(axis=1, level=0).mean()
q = pd.DataFrame()
for ut in upthresh:
# run m.swim.subbasins and necessary postprocesses
c.subbasin.update(upthresh=ut, verbose=-1)
# subbasin.csv column 'output_label' required for output
catch_lab = c.stations[['NAME', 'subbasinID']]
catch_lab.reset_index(inplace=True)
catch_lab.rename(columns={'NAME': 'output_label',
'subbasinID': 'subbasin_id'}, inplace=True)
catch_lab.set_index('subbasin_id', inplace=True)
sdf = c.subbasin.join(catch_lab)
sdf['output_label'] = sdf['output_label'].fillna('')
c.subbasin(data = sdf)
# get mean subbasin size and count
sb_size = c.subbasin.attributes['size']
nsb = len(sb_size)
# put mean values and right number of subbasins into clim files
nclim = pd.DataFrame({(v, i+1): mclim[v] for v in mclim.columns for i in range(nsb)})
nclim.columns.names = ['variable', 'subbasin_id']
c.climate.inputdata(nclim)
# run SWIM
c.run(save=False, quiet=True)
# keep Q at Blankenstein

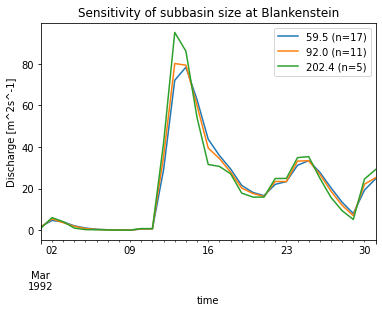

label = '%1.1f (n=%i)' % (sb_size.mean(), nsb)
q[label] = c.subbasin_label_daily_selected_stations_discharge['discharge']['BLANKENSTEIN']
print('Upthresh %s -> mean subbasin size %s' % (ut, label))
